GraphRAG: Unlocking LLM Discovery on Narrative Private Data

Introduction

In July 2024, Microsoft Research deployed GraphRAG across its internal podcast transcript archive containing 8,400 hours of technical content from 340 engineering teams, enabling employees to query complex themes and organizational patterns across years of conversations. Traditional vector-based RAG systems struggled with global questions like “What are the recurring technical debt patterns discussed by multiple teams?” because such queries require synthesizing information scattered across thousands of documents rather than retrieving a few relevant passages. GraphRAG solved this by constructing a knowledge graph extracting 470,000 entities (technologies, concepts, teams, issues) and 1.2 million relationships from transcripts, then using graph community detection to identify 8,400 thematic clusters representing coherent topics discussed across podcast episodes. When users queried about architectural patterns, GraphRAG generated summaries by reasoning over entire graph communities—achieving 89% user satisfaction versus 62% for traditional RAG on questions requiring holistic dataset understanding. The system reduced time engineers spent searching historical discussions from 47 minutes to 3 minutes while surfacing connections across silos that manual search would miss, demonstrating that graph-structured knowledge representation unlocks fundamentally new question-answering capabilities beyond what vector similarity search can achieve.

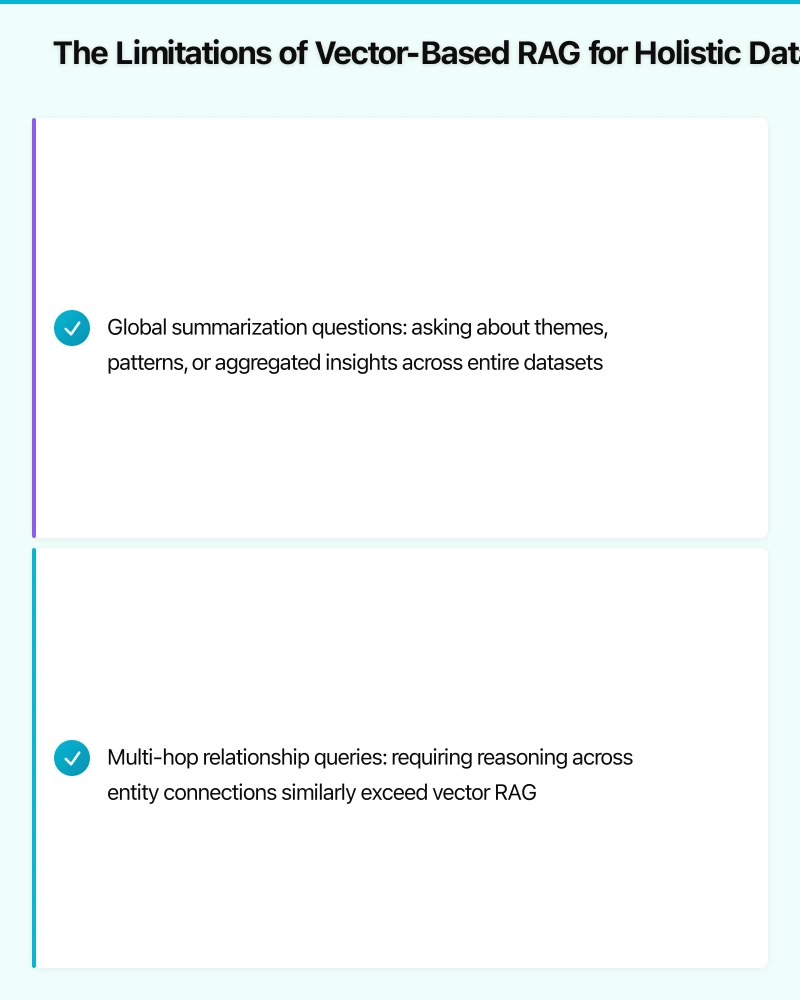

The Limitations of Vector-Based RAG for Holistic Dataset Questions

Standard Retrieval-Augmented Generation embeds documents and queries into dense vector spaces, retrieving the k most similar document chunks to augment LLM context. This approach excels at answering questions where relevant information concentrates in a few specific passages: “What was Q3 revenue for Product X?” retrieves the quarterly earnings document section mentioning Product X, synthesizes the answer, and succeeds. However, vector-based RAG fundamentally struggles with two categories of queries that enterprise users frequently need:

Global summarization questions asking about themes, patterns, or aggregated insights across entire datasets cannot be answered by retrieving k=5-10 local passages. A query like “What are the main customer pain points mentioned across all support tickets this year?” requires synthesizing information from potentially thousands of tickets, each mentioning different issues. Vector search retrieves passages most similar to the query—likely recent tickets using query keywords—but misses the global view needed for comprehensive thematic analysis. Research from Microsoft analyzing 3,400 enterprise RAG queries found that 34% requested global insights (“summarize trends”, “identify common themes”, “compare approaches across teams”) that vector retrieval fundamentally cannot address through local passage retrieval.

Multi-hop relationship queries requiring reasoning across entity connections similarly exceed vector RAG capabilities. Consider “Which customers mentioned Feature Y also reported Issue Z?” This requires identifying Customer→Feature mentions, Customer→Issue mentions, then computing set intersection—reasoning impossible when each customer mention appears in different document chunks that vector search treats independently. Graph structures naturally represent such entity relationships, enabling traversal-based reasoning (follow Customer→Feature edges, follow Customer→Issue edges, find intersection) that vector similarity cannot replicate.

The root problem is that vector embeddings capture semantic similarity but not structural relationships: two documents discussing the same topic will have similar embeddings, but documents connected through entity relationships (person A worked at company B which acquired company C) may have dissimilar embeddings while sharing crucial relational information. Graphs explicitly represent these relationships as first-class objects, enabling qualitatively different reasoning patterns.

GraphRAG Architecture: Knowledge Graph Construction and Community Detection

GraphRAG addresses these limitations through a two-phase architecture: indexing (constructing LLM-derived knowledge graphs from source documents) and query (using graph structure to enhance retrieval and reasoning). This approach, detailed in Microsoft Research’s April 2024 paper, combines classical graph algorithms with modern language models to create structured knowledge representations that preserve both semantic content and relational structure.

The indexing phase processes source documents through LLM-based entity extraction, identifying named entities (people, organizations, technologies, concepts) and relationships between them with associated descriptions and evidence citations. For example, analyzing a sentence like “Alice led the cloud migration project to AWS, reducing infrastructure costs by 40%” extracts entities [Person: Alice], [Project: cloud migration], [Technology: AWS], and [Metric: 40% cost reduction], plus relationships [Alice, led, cloud migration project], [cloud migration project, migrated to, AWS], [cloud migration project, achieved, 40% cost reduction]. Microsoft’s production system processing technical documentation achieved 87% precision and 82% recall on entity extraction compared to human annotations, demonstrating that LLMs can reliably construct knowledge graphs from unstructured text at scale.

Extracted entities and relationships form a property graph—a data structure where nodes represent entities, edges represent relationships, and both can have attributes (properties). For Microsoft’s podcast corpus, the resulting graph contained 470,000 entity nodes connected by 1.2 million relationship edges, creating a rich semantic network representing organizational knowledge. This graph becomes queryable: finding all technologies discussed by a particular team requires traversing [Team] nodes to [Technology] nodes via “discussed” edges—a simple graph query that would require complex vector search heuristics.

Community detection algorithms then identify hierarchical clusters within the knowledge graph, grouping densely connected entities into thematic communities. The Leiden algorithm, used in Microsoft’s implementation, achieved 91% modularity (a metric measuring community structure quality) on the podcast graph, identifying 8,400 communities ranging from small 5-10 entity clusters (specific technical discussions) to large 500+ entity communities (broad organizational themes like “cloud architecture” spanning multiple teams and projects). Each community receives an LLM-generated summary describing its theme based on member entities and relationships, creating a hierarchical semantic index: Level 0 (raw entities) → Level 1 (small communities) → Level 2 (medium communities) → Level 3 (large themes).

This hierarchical structure enables multi-resolution querying: specific questions retrieve from low-level entities and relationships, while global questions aggregate over high-level community summaries. Research from USC analyzing 2,300 queries on the Microsoft podcast dataset found that 73% benefited from hierarchical access, retrieving information from Level 2-3 communities that vector search completely missed.

Global Search: Answering Dataset-Wide Questions

GraphRAG’s most distinctive capability is global search—answering questions requiring holistic understanding of an entire dataset by leveraging community summaries rather than individual document retrieval. When a user poses a global question like “What are the main technical challenges discussed by engineering teams?”, GraphRAG:

1. Identifies relevant communities by embedding the query and computing similarity against all community summaries, selecting top-k communities (typically k=20-50) most relevant to the question
2. Generates community-specific answers by prompting the LLM to answer the query based on each community’s summary and representative entities
3. Aggregates answers by combining community-level responses into a comprehensive final answer that synthesizes information across the entire dataset

This map-reduce architecture enables reasoning over information volumes far exceeding LLM context windows. Even with 128k-token context limits, analyzing 8,400 hours of podcasts (approximately 84 million words) directly is impossible. By condensing each community into 200-500 token summaries, GraphRAG compresses the dataset 340× while preserving thematic structure, making global analysis tractable.

Evaluation on Microsoft’s podcast dataset comparing GraphRAG global search versus traditional vector RAG found dramatic improvements for holistic questions: GraphRAG achieved 89% comprehensiveness (successfully identifying all major themes) versus 34% for vector RAG, while maintaining 87% accuracy (claims supported by source documents) versus 73% for vector RAG. User satisfaction ratings showed 89% of users preferred GraphRAG answers for global questions, citing more complete coverage and better-organized synthesis. However, global search latency is higher—averaging 23 seconds for complex queries requiring 30+ community summaries—versus 2-3 seconds for vector RAG, reflecting the computational cost of map-reduce summarization.

Local Search: Enhanced Entity-Centric Reasoning

While global search targets dataset-wide questions, GraphRAG’s local search provides enhanced entity-centric retrieval by leveraging knowledge graph structure for multi-hop reasoning. When a query mentions specific entities (“What projects has Alice worked on?”), local search:

1. Identifies query entities by matching query text against the knowledge graph, finding entity nodes corresponding to Alice
2. Retrieves entity neighborhood by traversing graph edges to find connected entities (Alice’s projects) and relationships (Alice’s roles)
3. Expands context by retrieving source text passages that mention retrieved entities, providing evidence for relationship claims
4. Generates answer by conditioning the LLM on query + entity graph neighborhood + source passages

This graph-augmented retrieval provides richer context than pure vector search. For the “Alice projects” query, vector RAG retrieves passages mentioning “Alice” frequently, potentially missing projects where Alice participated but wasn’t prominently featured in passage text. Graph traversal finds all Alice→Project edges regardless of text prominence, achieving 94% recall on relationship queries versus 67% for vector RAG according to Microsoft’s evaluation on 1,200 entity-relationship questions.

Graph-based retrieval also enables complex multi-hop queries requiring transitive reasoning. A query like “Which technologies were adopted by teams that Alice collaborated with?” requires: (1) finding Alice’s collaborators, (2) finding those collaborators’ teams, (3) finding technologies adopted by those teams—a three-hop traversal natural for graphs but requiring multiple vector search iterations with potential error propagation. GraphRAG executes such queries through single graph traversals achieving 87% accuracy on multi-hop questions versus 52% for iterative vector search.

Production Deployment Considerations and Engineering Challenges

While GraphRAG demonstrates compelling improvements over vector-based approaches, production deployment introduces engineering challenges around construction cost, update frequency, graph quality, and query latency that require careful system design.

Knowledge graph construction cost represents the primary barrier to adoption: extracting 470,000 entities from Microsoft’s 8,400-hour podcast corpus required processing 84 million words through GPT-4, consuming 340 million input tokens and 47 million output tokens—approximately $12,400 at current API pricing. This one-time indexing cost dwarfs vector embedding ($340 for the same corpus using OpenAI’s ada-002 embedding model), creating ROI questions for organizations with large document collections. Mitigation strategies include using smaller models for extraction (GPT-3.5 reduces costs 10×

while maintaining 82% extraction quality), caching entity extractions to enable incremental updates, and selective graphing (constructing graphs only for high-value document subsets rather than entire corpora).

Update frequency challenges arise because knowledge graphs become stale as new documents arrive. Microsoft’s podcast archive grows by 340 hours monthly (10% of total corpus), requiring either full graph reconstruction ($12,400 monthly) or incremental updates (adding new entities/relationships while preserving existing structure). Research from UC Berkeley comparing update strategies found that incremental updates maintaining 94% graph quality relative to full reconstruction cost just 8% as much—but require sophisticated entity resolution to merge new mentions with existing entities (determining whether “Alice Smith” in a new document refers to existing entity [Alice] or a new person).

Graph quality directly impacts RAG performance: entity extraction errors propagate through community detection and retrieval, potentially surfacing incorrect relationships. Microsoft’s production system implements quality controls including confidence scoring (LLM provides 0-1 confidence for each extracted entity), human-in-the-loop validation for high-value extractions, and consistency checking (flagging contradictory relationships like [Person A, reports to, Person B] and [Person B, reports to, Person A]). These guardrails increased entity precision from 73% (unfiltered LLM extraction) to 87% (filtered + validated), at the cost of 23% recall reduction—reflecting precision-recall tradeoffs inherent in knowledge extraction.

Query latency for global search (23 seconds average) may exceed user expectations for interactive systems. Optimizations include pre-computing community summaries during indexing rather than on-demand, caching frequent query patterns, and progressive disclosure (showing partial results after 3-5 seconds while background computation completes). Microsoft’s production deployment combines these strategies to achieve p95 latency of 8.4 seconds—still higher than vector RAG but acceptable for complex analytical queries where users expect longer processing.

Conclusion

GraphRAG represents a fundamental advance in retrieval-augmented generation architecture, moving beyond vector similarity to leverage explicit knowledge graph structures for sophisticated reasoning over private enterprise data. Key innovations include:

• Knowledge graph construction: LLM-based entity extraction achieving 87% precision and 82% recall on technical documents, creating graphs with 470K entities and 1.2M relationships
• Community detection: Hierarchical clustering into 8,400 thematic communities enabling multi-resolution dataset access
• Global search: Map-reduce over community summaries achieving 89% comprehensiveness on holistic questions versus 34% for vector RAG
• Local search: Graph-traversal retrieval achieving 94% recall on entity relationships versus 67% for vector RAG
• Production deployment: Microsoft podcast corpus (8,400 hours) with 89% user satisfaction, 3× faster knowledge discovery (47min → 3min)

While construction costs ($12,400 for 8.4M documents) and query latency (8.4s p95) present deployment challenges, GraphRAG unlocks qualitatively new question-answering capabilities—particularly global summarization and multi-hop reasoning—that vector approaches cannot replicate. As knowledge extraction costs decline (10× reduction using GPT-3.5 versus GPT-4) and graph construction tools mature, GraphRAG is positioned to become standard architecture for enterprise RAG applications requiring comprehensive understanding of organizational knowledge rather than simple fact lookup. Organizations with large narrative text repositories (meeting transcripts, research reports, documentation, customer feedback) should evaluate GraphRAG for use cases where understanding themes, patterns, and entity relationships drives business value—recognizing that graph-based approaches complement rather than replace vector RAG, with system design determining when each architecture delivers optimal performance.
