Enterprise Integration Patterns for Event-Driven Microservices

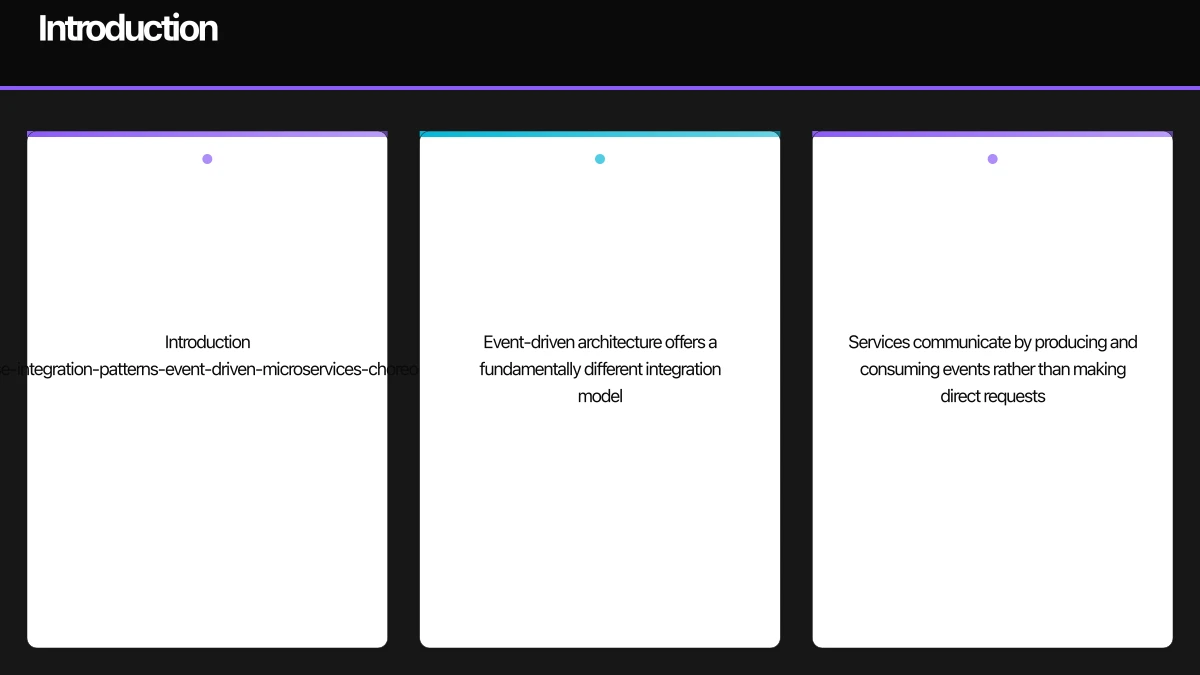

Introduction

The shift to microservices architecture has delivered on its promise of independent deployability and team autonomy, but it has also introduced a formidable integration challenge. Where monolithic applications handled cross-cutting concerns through internal function calls and shared databases, microservices must coordinate across network boundaries, each service maintaining its own data store and communicating through explicit interfaces.

Request-response APIs, typically REST or gRPC, were the initial answer to microservices communication, and they remain appropriate for synchronous interactions where the caller needs an immediate response. However, as enterprises scale their microservices architectures to hundreds or thousands of services, the limitations of purely synchronous integration become apparent: tight temporal coupling, cascading failures, and the inability to cleanly model business processes that are inherently asynchronous.

Event-driven architecture offers a fundamentally different integration model. Services communicate by producing and consuming events rather than making direct requests. This inversion decouples services in time and intent: the producer does not know or care which services consume its events, and consumers process events at their own pace. For enterprise architects designing the next generation of distributed systems, understanding when and how to apply event-driven integration patterns is essential.

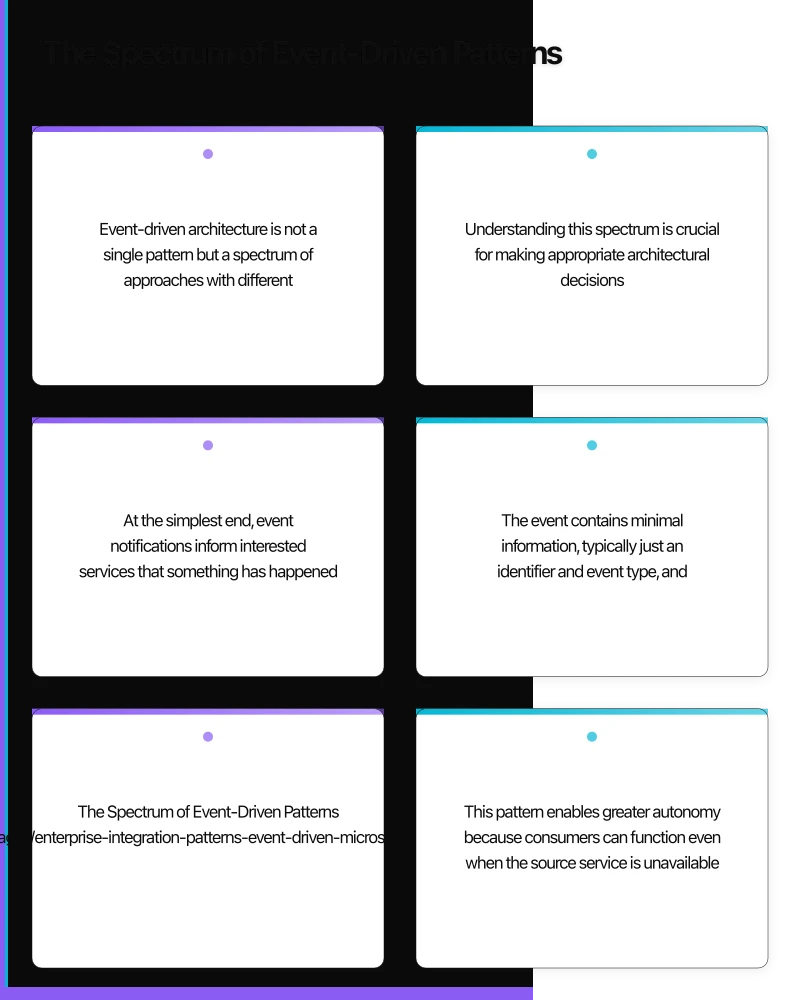

The Spectrum of Event-Driven Patterns

Event-driven architecture is not a single pattern but a spectrum of approaches with different characteristics and trade-offs. Understanding this spectrum is crucial for making appropriate architectural decisions.

At the simplest end, event notifications inform interested services that something has happened. The event contains minimal information, typically just an identifier and event type, and consumers must query the source service for details. This pattern adds loose coupling with minimal change to existing service designs but introduces additional network calls and creates a runtime dependency on the source service’s availability.

Event-carried state transfer includes the relevant data in the event itself, allowing consumers to process the event without calling back to the source. This pattern enables greater autonomy because consumers can function even when the source service is unavailable. The trade-off is larger event payloads and the need for consumers to maintain their own materialised views of data owned by other services. This local data redundancy is often beneficial for performance and resilience, but it requires eventual consistency, which not all business processes can tolerate.

Event sourcing takes a more radical approach, storing the history of all changes to a domain entity as a sequence of events rather than storing only the current state. The current state is derived by replaying events. This pattern provides a complete audit trail, enables temporal queries, and supports rebuilding state for new read models. However, it introduces significant complexity in event schema evolution, state reconstruction performance, and developer cognitive load.

CQRS, Command Query Responsibility Segregation, often accompanies event sourcing by separating the write model (which processes commands and generates events) from the read model (which is optimised for queries). This separation allows each side to be optimised independently: the write model for transactional integrity and the read model for query performance. In enterprise contexts, CQRS enables the creation of multiple read models tailored to different consumers’ needs without modifying the core domain logic.

Choreography Versus Orchestration

One of the most consequential design decisions in event-driven microservices is whether to coordinate multi-service business processes through choreography or orchestration.

In choreography, each service reacts independently to events, and the overall business process emerges from the collective behaviour of participating services. There is no central coordinator. A common example is order processing: an order service publishes an “order placed” event, the payment service reacts by processing payment and publishes a “payment completed” event, the inventory service reacts by reserving stock, and so on. Each service knows only about the events it consumes and produces; the end-to-end process is implicit in the event flow.

Choreography has compelling advantages. It maximises service autonomy, avoids single points of failure, and allows processes to evolve by adding or modifying individual services without changing a central coordinator. However, as processes grow more complex, choreographed systems become difficult to understand, monitor, and debug. The end-to-end business process is not visible in any single place; it is distributed across the event handling logic of multiple services.

Orchestration introduces a central coordinator, sometimes called a saga orchestrator, that explicitly manages the flow of a multi-service process. The orchestrator sends commands to participating services and handles their responses, making the process flow explicit and visible. Saga orchestrators also manage compensation logic, the actions needed to undo partial progress when a step in a multi-service process fails.

Orchestration provides clearer visibility into process state, simpler error handling, and easier process modification. The trade-off is the introduction of a central component that services depend on and that must be highly available. The orchestrator also creates a degree of coupling between services and the process definition.

In practice, enterprise architects should use both patterns, applying each where its characteristics are most beneficial. Choreography works well for loosely coupled, naturally reactive processes where the interaction pattern is relatively simple. Orchestration is preferable for complex, mission-critical business processes where visibility, error handling, and compensating transactions are essential. Many enterprise systems combine both patterns within the same architecture, using choreography for event notification and data synchronisation while orchestrating complex business transactions.

The Enterprise Event Backbone

Regardless of the specific patterns employed, enterprise event-driven architectures require a robust event backbone: the infrastructure that transports, stores, and delivers events across the organisation. Apache Kafka has become the dominant technology for this purpose, and for good reason. Its combination of high throughput, durability, ordering guarantees, and replay capability makes it well-suited for enterprise event streaming.

However, deploying Kafka as an enterprise event backbone requires careful architectural planning. Topic design is critical: topics should align with domain events and bounded contexts rather than with source systems or technical concerns. Schema management, typically using a schema registry with Avro or Protobuf schemas, ensures that producers and consumers agree on event formats and that schemas can evolve without breaking existing consumers.

Event governance becomes important as the event backbone grows. Without governance, the event backbone can devolve into a tangled web of poorly documented events, just as ungoverned API landscapes create integration chaos. An enterprise event catalogue that documents available events, their schemas, their producers, and their consumers is essential for maintaining the backbone’s value as a shared integration asset.

Partitioning strategy affects both performance and ordering guarantees. Events that must be processed in order should share a partition key, typically a domain entity identifier. Cross-partition ordering is not guaranteed in Kafka, so architects must design their event models and consumers to account for this constraint.

Retention policies determine how long events are available for replay. Infinite retention enables powerful capabilities like rebuilding consumer state and temporal queries but increases storage costs. Most enterprises adopt a tiered approach: recent events are available in Kafka for operational replay, while historical events are archived to lower-cost storage like cloud object stores for compliance and analytical purposes.

For organisations not yet ready for the operational complexity of self-managed Kafka, managed services like Confluent Cloud, Amazon MSK, and Azure Event Hubs provide lower-barrier entry points. The key architectural principles regarding topic design, schema management, and event governance apply regardless of whether Kafka is self-managed or consumed as a service.

Handling the Hard Problems

Several challenges consistently arise in enterprise event-driven architectures and deserve specific attention.

Exactly-once processing is one of the most misunderstood topics in distributed systems. True exactly-once delivery is impossible in the general case, but effectively-once processing can be achieved through idempotent consumers that produce the same result regardless of how many times they process the same event. Implementing idempotency requires careful design: consumers must be able to detect duplicate events, typically using event identifiers, and either skip them or reprocess them safely.

Event schema evolution is inevitable as business requirements change. The schema registry approach, combined with compatibility rules that prevent breaking changes, provides a systematic solution. Forward-compatible and backward-compatible schema changes allow producers and consumers to evolve independently. Breaking changes, when truly necessary, require careful migration planning, typically involving parallel topic migration or versioned event types.

Distributed tracing across event-driven systems is more complex than in synchronous architectures because the causal chain is not captured in call stacks. Correlation identifiers that propagate through event chains enable end-to-end tracing, but this requires disciplined implementation across all services. Observability platforms like Jaeger and Zipkin support distributed tracing, but integrating them with asynchronous event flows requires custom instrumentation.

Testing event-driven systems requires approaches beyond traditional unit and integration testing. Contract testing verifies that producers and consumers agree on event schemas. Chaos testing validates system behaviour when event delivery is delayed, duplicated, or reordered. End-to-end business process testing verifies that the choreographed or orchestrated flow produces correct outcomes.

The Strategic Value of Event-Driven Architecture

Event-driven architecture is not merely a technical pattern; it is a strategic enabler. By decoupling services in time and intent, it enables the organisational autonomy that makes microservices architecture valuable at scale. By providing a durable, replayable event log, it creates a foundation for real-time analytics, machine learning pipelines, and new business capabilities that emerge from combining events from across the enterprise.

For CTOs evaluating their integration strategy, the question is not whether to adopt event-driven patterns, as most enterprises already use some form of asynchronous messaging, but how to mature their event-driven capabilities into a coherent enterprise architecture. This maturation requires investment in event infrastructure, governance, and engineering skills, but the returns in agility, resilience, and insight justify that investment.
