Enterprise API Security: OAuth, Zero Trust, and Modern Protection Patterns

APIs have become the nervous system of modern enterprises, connecting applications, enabling partner integrations, and exposing capabilities to customers. This connectivity creates immense value but also introduces significant security exposure. Gartner predicts that by 2025, API abuse will be the most frequent attack vector for enterprise web applications. The OWASP API Security Top 10 documents common vulnerabilities that attackers actively exploit. For CTOs building API-centric architectures, security must be foundational rather than an afterthought.

The challenge has intensified as API portfolios grow more complex. Organizations now manage hundreds or thousands of APIs across internal services, partner integrations, and public offerings. Traditional perimeter security cannot protect this distributed attack surface. Modern API security requires defense-in-depth approaches combining authentication, authorization, threat protection, and continuous monitoring within zero trust frameworks that assume no implicit trust regardless of network position.

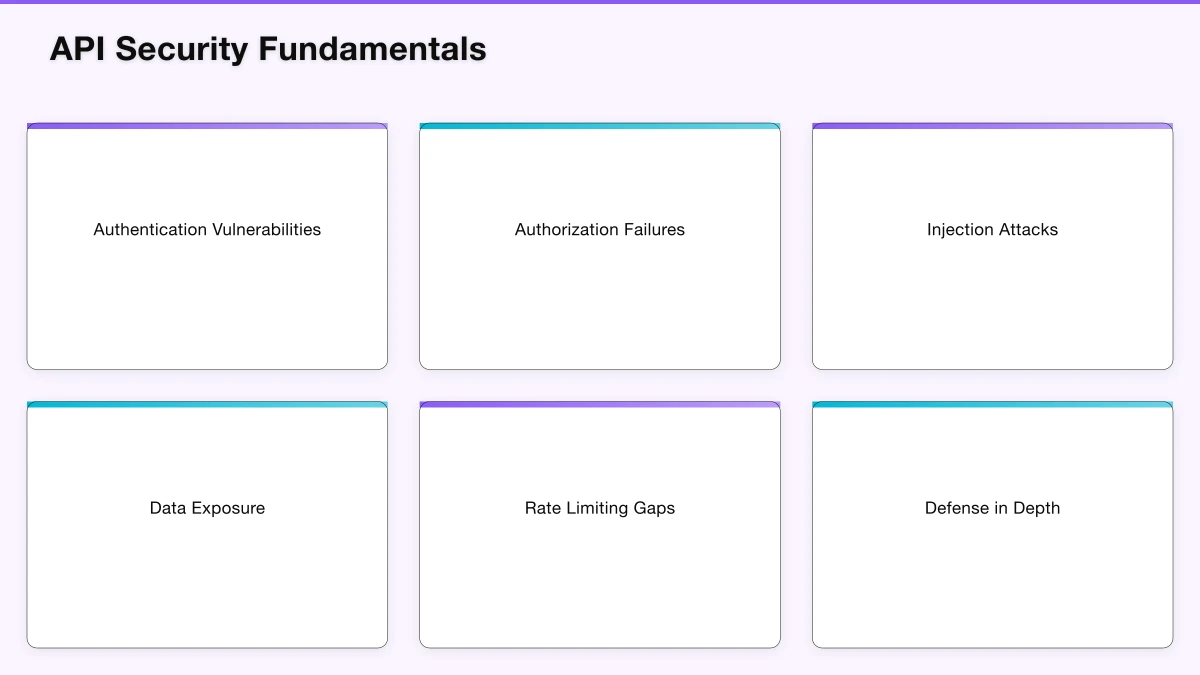

API Security Fundamentals

Understanding the API security landscape enables appropriate investment prioritization and architecture decisions.

The API Attack Surface

Authentication Vulnerabilities: APIs without proper authentication expose functionality to unauthorized access. Weak authentication mechanisms, credential exposure, and session management flaws enable attackers to impersonate legitimate users.

Authorization Failures: Even authenticated requests may access resources beyond their authorization. Broken object-level authorization (BOLA) and broken function-level authorization consistently appear in API vulnerability assessments.

Injection Attacks: APIs accepting user input without proper validation face injection risks. SQL injection, command injection, and NoSQL injection enable attackers to manipulate backend systems.

Data Exposure: APIs may inadvertently expose sensitive data through verbose error messages, excessive data in responses, or missing field-level access control.

Rate Limiting Gaps: APIs without rate limiting face denial-of-service attacks and abuse scenarios including credential stuffing and data scraping.

Security Architecture Principles

Defense in Depth: Multiple security layers ensure that single control failures don’t create complete exposure. Authentication, authorization, input validation, and monitoring work together.

Least Privilege: APIs should expose minimum necessary functionality with minimum necessary permissions. Excessive API scope creates unnecessary risk.

Zero Trust: Assume no implicit trust based on network position. Every API request requires authentication and authorization regardless of origin.

Secure by Default: Security should be the default configuration, not an optional enhancement. Insecure options require explicit, justified enablement.

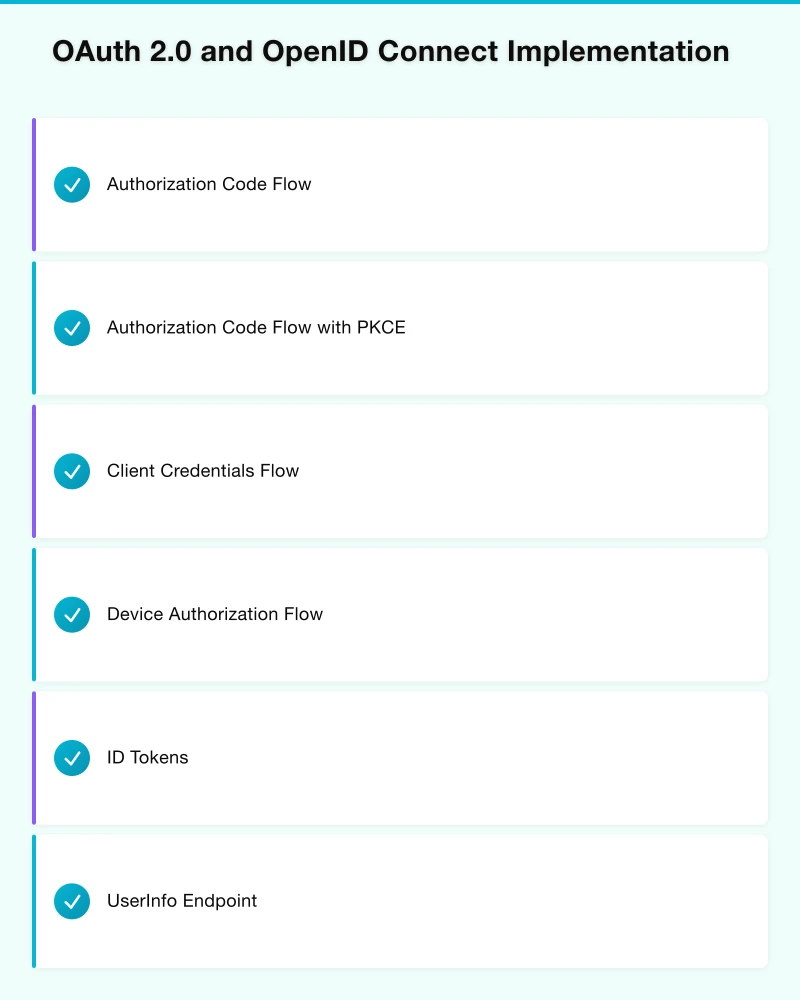

OAuth 2.0 and OpenID Connect Implementation

OAuth 2.0 and OpenID Connect provide the foundation for modern API authentication and authorization.

OAuth 2.0 Fundamentals

OAuth 2.0 enables delegated authorization, allowing applications to access APIs on behalf of users without sharing credentials. Understanding OAuth flows enables appropriate pattern selection.

Authorization Code Flow: The most secure flow for applications with backend servers. Users authenticate with the authorization server, which issues an authorization code. The application backend exchanges this code for tokens. Suitable for traditional web applications and native applications with secure storage.

Authorization Code Flow with PKCE: Extension adding Proof Key for Code Exchange, eliminating vulnerabilities in the original authorization code flow. Required for public clients (mobile apps, SPAs) where client secrets cannot be securely stored.

Client Credentials Flow: Machine-to-machine authentication where no user is involved. Applications authenticate directly with their credentials to obtain access tokens. Appropriate for service-to-service communication.

Device Authorization Flow: Enables authorization for devices with limited input capabilities. Users complete authorization on a separate device with full browser capability.

OpenID Connect for Identity

OpenID Connect extends OAuth 2.0 with identity layer capabilities.

ID Tokens: JWT containing user identity claims. Enables applications to understand who authenticated, not just that authentication occurred.

UserInfo Endpoint: API endpoint returning additional user claims. Enables retrieving user information without encoding everything in tokens.

Standard Claims: OpenID Connect defines standard claims (name, email, etc.) ensuring interoperability across providers.

Implementation Best Practices

Token Management:

Access Token Lifetimes: Short-lived access tokens (15-60 minutes) limit exposure from token theft. Balance security against user experience and refresh overhead.

Refresh Tokens: Long-lived tokens enabling access token renewal without re-authentication. Require secure storage and rotation policies.

Token Revocation: Implement revocation capabilities for compromised tokens. Consider token introspection for real-time validity checking.

Scope Design:

Design OAuth scopes with minimum privilege principles:

• Granular scopes enabling precise permission grants
• Clear scope naming conventions
• Documentation of scope implications
• Scope validation in authorization servers

State Management:

Implement state parameters preventing CSRF attacks:

• Generate cryptographically random state values
• Validate state on callback
• Bind state to user session

Redirect URI Validation:

Strict redirect URI validation prevents authorization code interception:

• Exact URI matching (no wildcards in production)
• HTTPS enforcement
• Pre-registration of valid URIs

Authorization Server Selection

Cloud Identity Providers: Auth0, Okta, Azure AD, and Google Identity Platform provide managed authorization services. Benefits include reduced operational burden, compliance certifications, and advanced features. Considerations include vendor dependency and data residency.

Self-Hosted Solutions: Keycloak, IdentityServer, and similar platforms enable self-hosted authorization. Benefits include control and customization. Considerations include operational complexity and security maintenance responsibility.

Selection Criteria:

• Protocol support (OAuth 2.0, OIDC, SAML)
• Integration capabilities
• Compliance certifications
• Scalability requirements
• Total cost of ownership

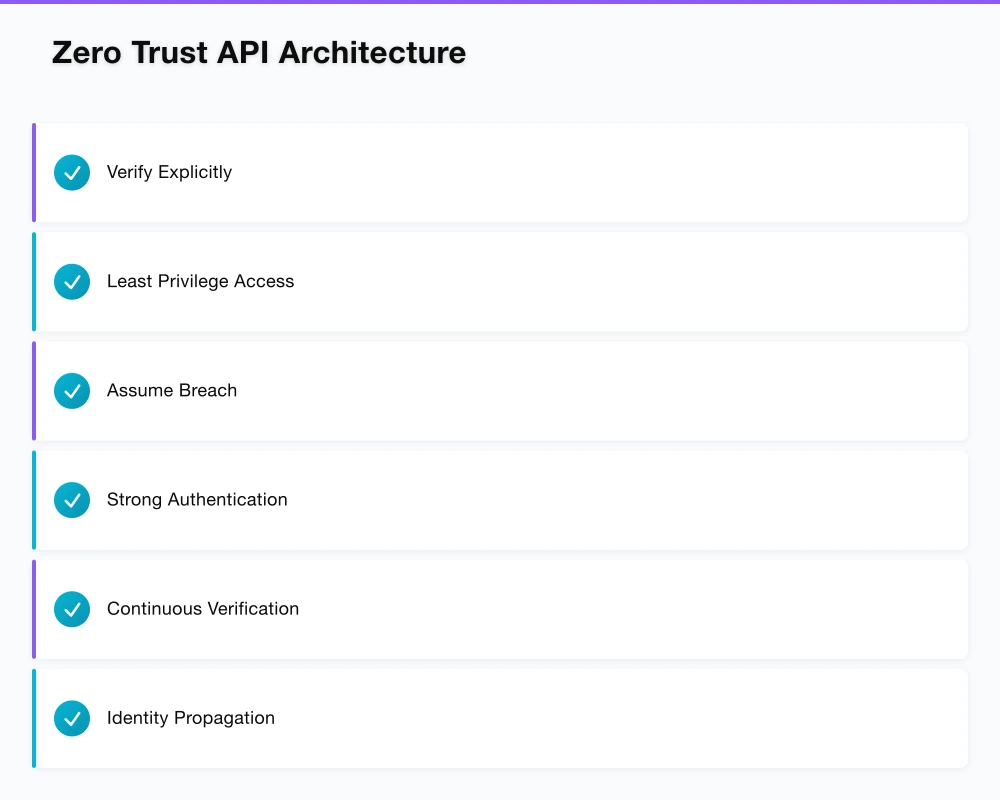

Zero Trust API Architecture

Zero trust principles fundamentally reshape API security architecture.

Zero Trust Principles for APIs

Verify Explicitly: Every API request requires authentication and authorization verification. No implicit trust based on network position, previous authentication, or request origin.

Least Privilege Access: Grant minimum permissions necessary for specific operations. Avoid broad access grants that persist beyond immediate need.

Assume Breach: Design systems assuming attackers may already have network access. Internal APIs require the same security rigor as external APIs.

Identity-Centric Security

Strong Authentication: APIs require robust authentication mechanisms:

• Token-based authentication with cryptographic verification
• Multi-factor authentication for sensitive operations
• Certificate-based authentication for service-to-service
• Risk-based authentication adapting to context

Continuous Verification: Session-based trust is insufficient. Each request should be independently verified:

• Token validation on every request
• Context evaluation (device, location, behavior)
• Step-up authentication for elevated operations

Identity Propagation: In microservices architectures, identity must propagate across service calls:

• Token exchange mechanisms
• Service mesh identity integration
• Audit trail maintenance

Network Security in Zero Trust

Micro-Segmentation: Traditional network perimeters are insufficient. Micro-segmentation limits lateral movement:

• Service-to-service access control
• Network policy enforcement
• Encrypted internal traffic

Service Mesh Security: Service meshes (Istio, Linkerd) provide network-level security:

• Mutual TLS between services
• Authorization policies
• Traffic observation and control

API Gateway Positioning: API gateways serve as policy enforcement points:

• Centralized authentication
• Rate limiting and throttling
• Traffic inspection and filtering

Data Protection

Encryption: Protect data in transit and at rest:

• TLS 1.3 for all API traffic
• Certificate management and rotation
• Sensitive data encryption in storage

Data Classification: Apply security controls based on data sensitivity:

• Classification schemas
• Field-level access control
• Audit logging for sensitive data access

Data Minimization: Reduce exposure through data minimization:

• Return only necessary fields
• Filter sensitive data from logs
• Time-limited data retention

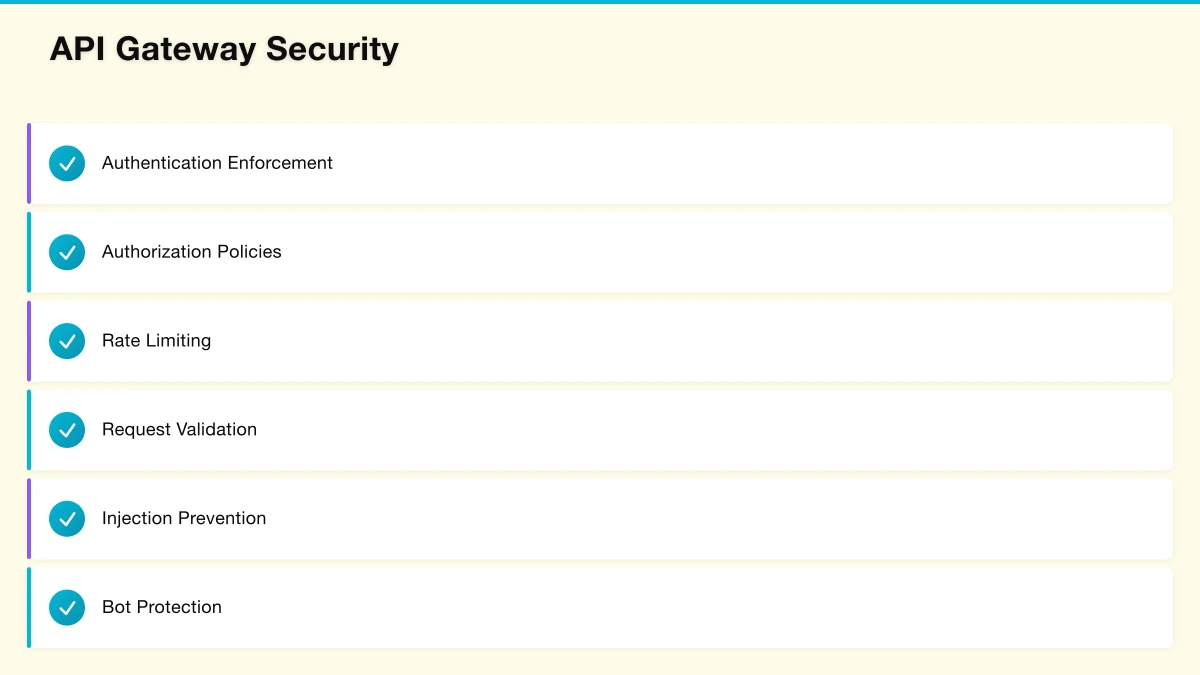

API Gateway Security

API gateways provide centralized security enforcement for API traffic.

Gateway Security Capabilities

Authentication Enforcement: Gateways validate authentication tokens before routing requests:

• JWT validation
• OAuth token introspection
• API key validation
• Certificate validation

Authorization Policies: Gateways enforce authorization policies:

• Scope validation
• Role-based access control
• Attribute-based access control
• Custom policy evaluation

Rate Limiting: Protect APIs from abuse through rate limiting:

• Request rate limits per client
• Concurrent request limits
• Cost-based rate limiting for expensive operations
• Graduated response (throttling before blocking)

Request Validation: Validate requests before backend processing:

• Schema validation against OpenAPI specifications
• Input sanitization
• Size limits
• Content-type enforcement

Threat Protection

Injection Prevention: Gateways can detect and block injection attempts:

• SQL injection patterns
• Command injection patterns
• NoSQL injection patterns

Bot Protection: Distinguish legitimate clients from malicious bots:

• Device fingerprinting
• Behavioral analysis
• CAPTCHA integration
• Reputation services

DDoS Mitigation: Protect against volumetric attacks:

• Traffic analysis and anomaly detection
• Geographic filtering
• Rate limiting at scale
• CDN integration for distribution

Gateway Architecture Patterns

Centralized Gateway: Single gateway handling all API traffic. Simpler to manage but potential scalability bottleneck.

Distributed Gateways: Multiple gateways for different API categories or regions. Better scalability but increased management complexity.

Gateway Mesh: Gateways integrated with service mesh for unified traffic management. Combines gateway capabilities with mesh benefits.

Selection Criteria:

• Traffic volume and patterns
• Latency requirements
• Management capabilities
• Integration with existing infrastructure

API Security Testing

Comprehensive testing validates security control effectiveness.

Testing Approaches

Static Analysis: Analyze API specifications and code for security issues:

• OpenAPI specification analysis
• Code scanning for vulnerabilities
• Dependency vulnerability scanning
• Configuration review

Dynamic Testing: Test running APIs for vulnerabilities:

• Authentication and authorization testing
• Injection testing
• Fuzzing with malformed inputs
• Business logic testing

Penetration Testing: Simulated attacks by security professionals:

• Reconnaissance and enumeration
• Vulnerability exploitation
• Privilege escalation attempts
• Data exfiltration testing

Security Testing in CI/CD

Shift-Left Security: Integrate security testing early in development:

• Pre-commit hooks for basic checks
• CI pipeline security scans
• Automated vulnerability scanning
• Security gate enforcement

Continuous Security Testing: Ongoing testing of deployed APIs:

• Scheduled vulnerability scans
• Continuous monitoring for new vulnerabilities
• Regression testing after changes
• Third-party penetration testing

Common Vulnerability Testing

BOLA Testing: Test object-level authorization:

• Access objects belonging to other users
• Modify enumerable IDs in requests
• Test across user roles

BFLA Testing: Test function-level authorization:

• Access administrative functions as regular user
• Test hidden endpoints
• Verify role enforcement

Authentication Testing: Test authentication mechanisms:

• Credential stuffing resistance
• Brute force protection
• Session management
• Token security

API Security Monitoring and Incident Response

Detection and response capabilities complement preventive controls.

Security Monitoring

Log Collection: Comprehensive logging enables security monitoring:

• Authentication events
• Authorization decisions
• Request patterns
• Error conditions

Anomaly Detection: Identify unusual patterns indicating attacks:

• Unusual request volumes
• Geographic anomalies
• Behavioral deviations
• Error rate spikes

Real-Time Alerting: Immediate notification of security events:

• Authentication failures
• Authorization violations
• Rate limit breaches
• Known attack patterns

Threat Intelligence Integration

API-Specific Threat Intelligence: Leverage threat intelligence for API security:

• Known malicious IPs and patterns
• Emerging attack techniques
• Vulnerability disclosures
• Industry-specific threats

Automated Response: Integrate threat intelligence with automated response:

• Block known malicious sources
• Update WAF rules
• Adjust rate limits
• Enable additional logging

Incident Response

API Incident Procedures: Specific procedures for API security incidents:

• Incident classification and severity
• Containment actions (token revocation, IP blocking)
• Investigation procedures
• Recovery and restoration
• Post-incident analysis

Forensic Capabilities: Enable incident investigation:

• Request logging with sufficient detail
• Log retention policies
• Correlation capabilities
• Chain of custody for evidence

Governance and Compliance

Enterprise API security requires governance frameworks ensuring consistent protection.

API Security Standards

Security Requirements: Define mandatory security requirements:

• Authentication requirements by API classification
• Authorization model requirements
• Encryption requirements
• Logging requirements

Security Review Process: Gate APIs through security review:

• Design review for new APIs
• Code review with security focus
• Pre-deployment security testing
• Periodic security reassessment

Exception Management: Process for security requirement exceptions:

• Business justification
• Compensating controls
• Time-limited approval
• Regular review

Compliance Considerations

Regulatory Requirements: API security affects compliance:

• PCI-DSS for payment APIs
• HIPAA for healthcare data
• GDPR for personal data
• Industry-specific regulations

Audit Support: Enable compliance demonstration:

• Security control documentation
• Audit logging and retention
• Assessment support
• Remediation tracking

API Inventory and Classification

API Discovery: Maintain comprehensive API inventory:

• Automated API discovery
• Manual registration processes
• Shadow API detection
• Deprecated API tracking

Risk Classification: Classify APIs by risk level:

• Data sensitivity
• External exposure
• Business criticality
• Regulatory scope

Classification drives security control requirements.

Implementation Roadmap

Phased implementation enables progressive security enhancement.

Phase 1: Foundation (Months 1-3)

Core Authentication:

• OAuth 2.0 implementation for external APIs
• Token management infrastructure
• Basic authorization enforcement

Gateway Deployment:

• API gateway for external traffic
• Basic rate limiting
• Request logging

Baseline Assessment:

• API inventory development
• Risk classification
• Gap analysis against standards

Phase 2: Enhancement (Months 3-6)

Advanced Authorization:

• Fine-grained authorization policies
• Scope-based access control
• Service-to-service authentication

Threat Protection:

• WAF integration
• Injection protection
• Bot management

Monitoring:

• Security monitoring deployment
• Anomaly detection
• Alerting integration

Phase 3: Maturation (Months 6-12)

Zero Trust Implementation:

• Network micro-segmentation
• Continuous verification
• Service mesh security

Advanced Capabilities:

• API security testing in CI/CD
• Threat intelligence integration
• Automated response

Governance:

• Security standards enforcement
• Compliance automation
• Continuous improvement

Measuring API Security Effectiveness

Metrics demonstrate security posture and identify improvement areas.

Security Posture Metrics:

• Percentage of APIs meeting security standards
• Vulnerability scan findings and trends
• Penetration test results
• Compliance assessment outcomes

Operational Metrics:

• Authentication failure rates
• Authorization violation frequency
• Rate limiting activations
• Security incident counts

Process Metrics:

• Time to remediate vulnerabilities
• Security review coverage
• Exception approval rates
• Training completion rates

Regular reporting ensures continued investment and identifies improvement opportunities.

---

Sources

1. OWASP. (2024). OWASP API Security Top 10. Open Web Application Security Project. https://owasp.org/www-project-api-security/
2. NIST. (2024). Zero Trust Architecture (SP 800-207). National Institute of Standards and Technology.
3. OAuth 2.0 Working Group. (2024). OAuth 2.0 Security Best Current Practice. IETF. https://oauth.net/2/
4. Gartner. (2024). Market Guide for API Gateways. Gartner Research.
5. Google Cloud. (2024). API Security Best Practices. Google Cloud Architecture Center.

---

Ash Ganda is a technology executive specializing in enterprise security architecture and API strategy. Connect on LinkedIn to discuss API security for your organization.
