Enterprise Secrets Management: HashiCorp Vault at Scale

Introduction

Secrets management is the unglamorous foundation upon which enterprise security rests. API keys, database credentials, TLS certificates, encryption keys, OAuth tokens, and service account passwords permeate every layer of modern enterprise architecture. When managed poorly, through hard-coded values, shared spreadsheets, or unrotated static credentials, they represent the most common attack vector for data breaches and security incidents.

HashiCorp Vault has emerged as the dominant platform for enterprise secrets management, offering dynamic secrets generation, encryption as a service, identity-based access control, and comprehensive audit logging. However, deploying Vault at enterprise scale, serving thousands of applications across multiple environments and cloud providers, presents architectural and operational challenges that extend well beyond the initial installation.

This analysis addresses those challenges, providing a strategic framework for CTOs and security architects planning or scaling their Vault deployment. The focus is on the architectural decisions and operational practices that determine whether Vault becomes a reliable enterprise platform or an operational burden.

Architecture Patterns for Enterprise Vault

The foundational architectural decision is the Vault deployment topology. Enterprise environments typically require more sophisticated topologies than a single Vault cluster, and the choice of topology affects availability, performance, latency, and operational complexity.

A single production cluster with integrated storage (using Vault’s Raft consensus protocol) is the simplest topology and is appropriate for organisations with a single primary data centre or cloud region. Vault’s integrated storage provides high availability without requiring an external storage backend, simplifying operations. The cluster should have a minimum of five nodes for production workloads, distributed across availability zones, providing fault tolerance for up to two simultaneous node failures.

Multi-region deployments require more sophisticated approaches. Vault’s performance replication feature creates read-only secondary clusters in additional regions that can serve secrets read requests locally, reducing latency for geographically distributed applications. Write operations are forwarded to the primary cluster, introducing some latency for secrets creation and updates but ensuring consistency. This topology is well-suited for enterprises with applications deployed across multiple cloud regions.

For organisations requiring true multi-region write capability, Vault’s disaster recovery replication provides a standby cluster that can be promoted to primary in the event of a regional failure. This is not active-active; only one cluster serves writes at a time. True active-active secrets management across regions introduces consistency challenges that most enterprises should avoid unless their requirements specifically demand it.

Multi-cloud architectures present additional considerations. Vault clusters can be deployed in each cloud provider’s environment, using performance replication to maintain consistency. Alternatively, a centralised Vault deployment in a single cloud or on-premises can serve applications across clouds, though this introduces cross-cloud network dependencies and latency. The choice depends on the organisation’s tolerance for cross-cloud dependencies and the sensitivity of the workloads being served.

Namespace architecture deserves careful planning. Vault namespaces provide logical isolation within a single cluster, enabling multi-tenancy without the operational overhead of separate clusters. A common enterprise pattern uses top-level namespaces for business units or environments (production, staging, development) with nested namespaces for individual teams or applications. This provides appropriate isolation while centralising operational management.

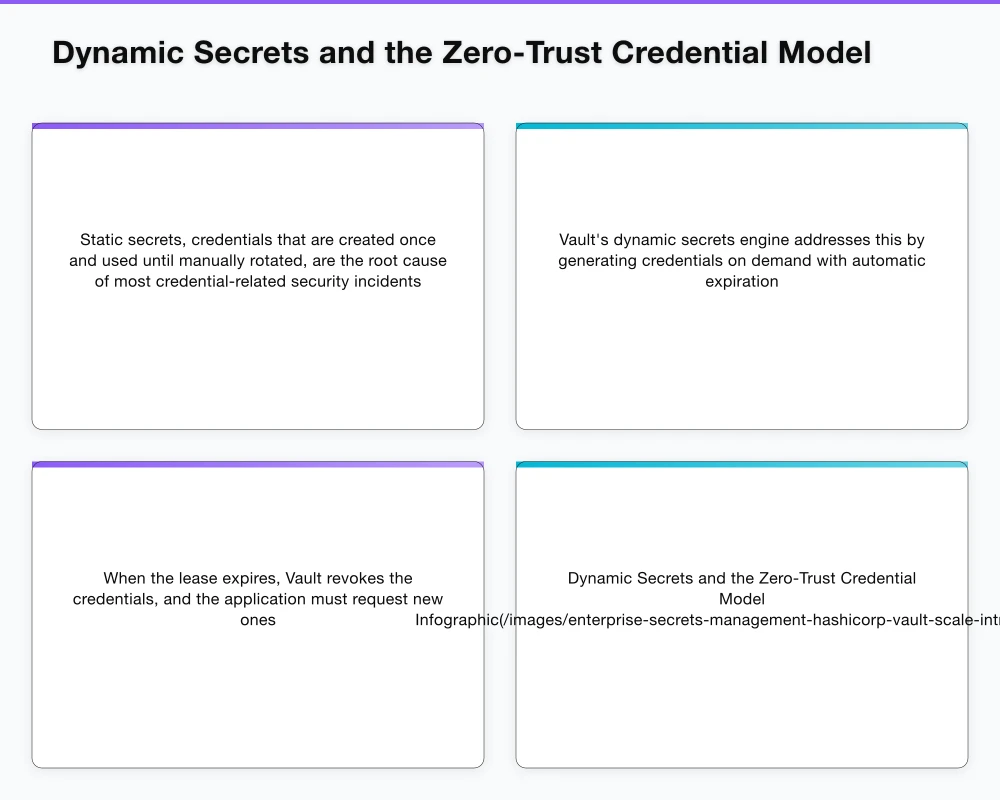

Dynamic Secrets and the Zero-Trust Credential Model

Static secrets, credentials that are created once and used until manually rotated, are the root cause of most credential-related security incidents. They accumulate over time, spread to multiple locations through configuration files and CI/CD pipelines, and persist long after the applications or people that created them have moved on.

Vault’s dynamic secrets engine addresses this by generating credentials on demand with automatic expiration. When an application requests database credentials, for example, Vault creates a new database user with a short-lived lease (typically measured in hours) and returns the credentials to the application. When the lease expires, Vault revokes the credentials, and the application must request new ones.

This model transforms the security posture of credential management. Every credential has a known expiration, so the window of exposure from a compromised credential is bounded. Every credential is unique to the requesting application, so credential usage can be attributed and audited with precision. There is no pool of long-lived secrets that can be harvested in a breach.

Implementing dynamic secrets at enterprise scale requires application architecture changes. Applications must be designed to request and refresh credentials through Vault’s API rather than reading them from static configuration files. Vault’s Agent and CSI Provider tools ease this transition by managing credential lifecycle on behalf of applications, injecting current credentials into the application’s environment without requiring direct API integration.

The enterprise adoption path for dynamic secrets typically begins with new applications built to integrate with Vault natively, then progressively migrates existing applications. Database credentials are usually the first target due to their high risk and the maturity of Vault’s database secrets engine. Cloud provider credentials, PKI certificates, and SSH keys follow. Full migration from static to dynamic secrets across a large enterprise is a multi-year journey, but each application migrated reduces the organisation’s attack surface.

Operational Excellence at Enterprise Scale

Operating Vault at enterprise scale demands operational rigour. Vault is a critical infrastructure component: if it is unavailable, applications cannot access the secrets they need to function. This criticality requires investment in several operational capabilities.

Monitoring and alerting should cover Vault cluster health (seal status, leader election, replication lag), performance metrics (request latency, token creation rate, lease expiration queue depth), and audit log analysis for anomalous access patterns. Vault’s telemetry integration with monitoring platforms like Datadog, Prometheus, and Splunk provides the necessary visibility.

Unsealing management is Vault’s most distinctive operational requirement. Vault encrypts all data at rest and requires an unsealing process after restart that typically involves providing multiple key shares held by different trusted operators. Auto-unseal mechanisms using cloud KMS services (AWS KMS, Azure Key Vault, or GCP Cloud KMS) reduce the operational burden of manual unsealing while maintaining the security model. For enterprise deployments, auto-unseal is strongly recommended.

Disaster recovery procedures must be tested regularly. This includes both data backup and restoration (using Vault’s snapshot capabilities) and the promotion of disaster recovery replicas in the event of primary cluster failure. These procedures should be documented, automated where possible, and practised through regular disaster recovery exercises.

Policy management at scale requires a systematic approach. Vault policies, written in HCL (HashiCorp Configuration Language), define which identities can access which secrets. As the number of applications and secrets grows, policy complexity increases. Treating policies as code, managed in version control with review processes and automated testing, prevents policy drift and ensures consistency. Sentinel policies, available in Vault Enterprise, add a layer of enforcement that can prevent overly permissive policies from being applied.

Integration with Enterprise Identity and Access Management

Vault’s value as an enterprise platform depends on its integration with the organisation’s identity infrastructure. Rather than maintaining a separate identity system, Vault should authenticate applications and users through existing enterprise identity providers.

For human users, integration with enterprise SSO through OIDC or SAML enables Vault access using existing corporate credentials with multi-factor authentication. This reduces the credential management burden and ensures that Vault access is governed by the same identity policies as other enterprise systems. Role mappings link corporate group memberships to Vault policies, enabling access management through existing identity governance processes.

For applications and services, multiple authentication methods address different deployment contexts. Kubernetes authentication allows pods to authenticate using their Kubernetes service account tokens. Cloud provider authentication methods (AWS IAM, Azure Active Directory, GCP IAM) allow applications to authenticate using their cloud identity. AppRole authentication provides a mechanism for CI/CD pipelines and automated processes. The choice of authentication method should align with the application’s deployment context to minimise integration complexity.

Certificate-based authentication using Vault’s PKI secrets engine creates a closed-loop system where Vault both issues and validates certificates, providing mutual TLS authentication between services. This pattern is particularly valuable in zero-trust network architectures where every service-to-service communication must be authenticated and encrypted.

The Strategic Perspective

Secrets management is not a security project; it is an enterprise platform investment. The value proposition extends beyond preventing breaches, though that alone justifies the investment. Dynamic secrets reduce operational toil associated with credential rotation. Centralised audit logging simplifies compliance reporting. Identity-based access control aligns with zero-trust security architectures. Encryption as a service simplifies application-level data protection.

For CTOs evaluating secrets management strategy, the key decision is whether to invest in building an enterprise-grade Vault deployment or to accept the risk and inefficiency of fragmented, application-specific secrets management. The evidence strongly favours centralised management. The operational investment is significant but bounded, and the security and operational benefits compound as more applications integrate with the platform.
